PRODUCT

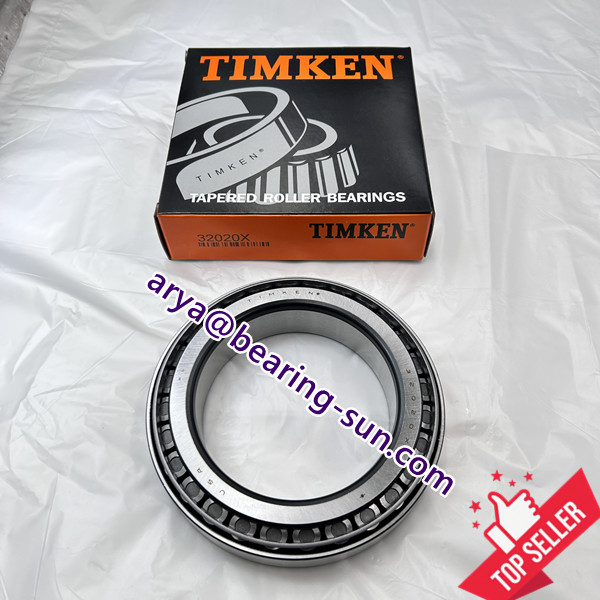

32020X TIMKEN
Product Attributes :
Model No. 32020X TIMKEN
Type : Single Row Tapered Roller Bearings
Size: 100X150X32mm
Weight: 1.862KG
Datasheet and drawing can be offered.
Stock available for fast delivery,contact me for a quick quotation
Sales Director :arya
Email: arya@bearing-sun.com
Product Description
32020X TIMKEN
The 32020X bearing is a single-row tapered roller bearing. It is designed to bear combined radial and axial loads and features low friction during operation.
Please feel free to email me if you are interested .arya@bearing-sun.com

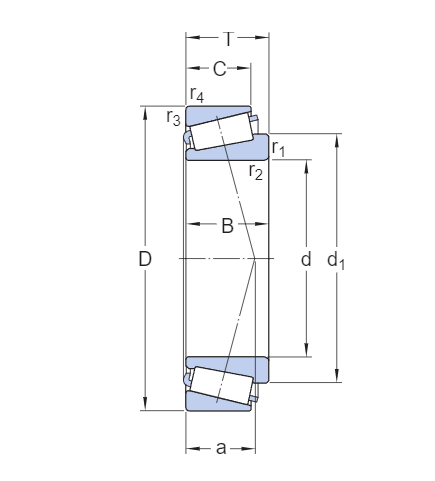

Drawing & Size
| Type | single row tapered roller bearings |
| Model No. | 32020X |
| d | 100 mm |
| D | 150 mm |
| B | 32 mm |
| Weight | 1.862KG |
Below same series bearings are recommended
| Bearing No. | Size (mm) | Mass(kg) | ||
| d | D | B | ||
| LM300849/LM300811 | 41 | 68 | 17.5 | 0.242 |
| 33275/33462 | 69.85 | 117.475 | 30.162 | 1.272 |
| 33281/33462 | 71.438 | 117.475 | 30.162 | 1.231 |
| 33 8 89/33821 | 50.8 | 95.25 | 27.783 | 0.868 |
| 33287/33462 | 73.025 | 117.475 | 30.162 | 1.188 |
| 368A/362A | 50.8 | 88.9 | 20.638 | 0.504 |
| 368/362 | 50.8 | 90 | 20 | 0.562 |
| 3780/3720 | 50.8 | 93.254 | 30.162 | 0.856 |
| 3782/3720 | 44.45 | 93.264 | 30.162 | 0.97 |
| 387A/382A | 57.15 | 96.838 | 21 | 0.599 |
| 39585/39520 | 63.5 | 112.712 | 30.162 | 1.258 |
| 2580/2523 | 31.75 | 69.85 | 23.812 | 0.451 |
| 28985/28921 | 60.325 | 100 | 25.4 | 0.77 |
| 47686/47620 | 82.55 | 133.35 | 33.338 | 1.757 |
| 47687/47620 | 82.55 | 133.35 | 33.338 | 1.737 |
| 387A/362S | 57.15 | 96.838 | 25.4 | 0.669 |
| 387A/382 | 57.15 | 98.425 | 21 | 0.646 |
| 3982/3920 | 63.5 | 112.712 | 30.162 | 1.243 |
| 3984/3920 | 66.675 | 112.712 | 30.162 | 1.166 |
| 462/453X | 57.15 | 104.775 | 30.162 | 1.07 |
| L44643/L44610 | 25.4 | 50.292 | 14.224 | 0.129 |
| L4469/L44610 | 26.988 | 50.292 | 14.224 | 0.12 |
| L45449/L45410 | 29 | 50.292 | 14.224 | 0.115 |
| LM48548/LM48510 | 34.925 | 65.088 | 18.034 | 0.259 |
| LM501349/LM501210 | 41.275 | 73.431 | 19.558 | 0.334 |
| LM501349/LM501314 | 41.275 | 73.431 | 21.43 | 0.355 |
