PRODUCT
HM803149/10 TIMKEN
Model No. HM803149/10 TIMKEN
Type : Single Row Tapered Roller Bearings
Size: 44.45X88.9X30.163mm
Weight: 0.85KG
Datasheet and drawing can be offered.
Stock available for fast delivery,contact me for a quick quotation
Sales Director :arya
Email: arya@bearing-sun.com

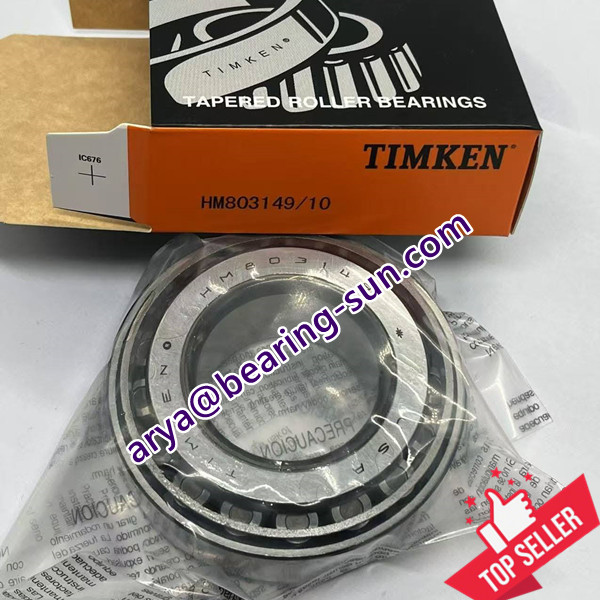

HM803149/10 TIMKEN
The HM803149/10 bearing is a type of tapered roller bearing, also known as HM803149/HM803110. with an inner ring model of HM803149 and an outer ring model of HM803110.
(d) is 44.45 mm (1.7500 inches), the outer diameter (D) is 88.9 mm (3.6250 inches), and the thickness (T) is 30.163 mm
Please feel free to email me if you are interested .arya@bearing-sun.com

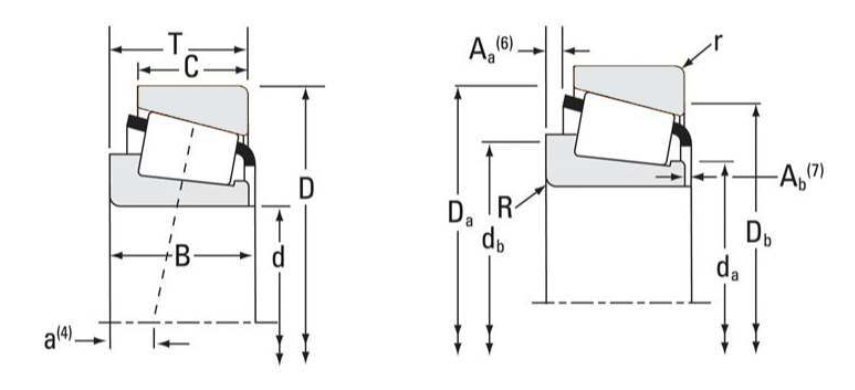

Drawing & Size
| Type | single row tapered roller bearings |
| Model No. | HM803149/10 |
| d | 44.45 mm |
| D | 88.9 mm |
| B | 29.37 mm |
| C | 23.02 mm |
| T | 30.163 mm |
| Weight | 0.85 KG |

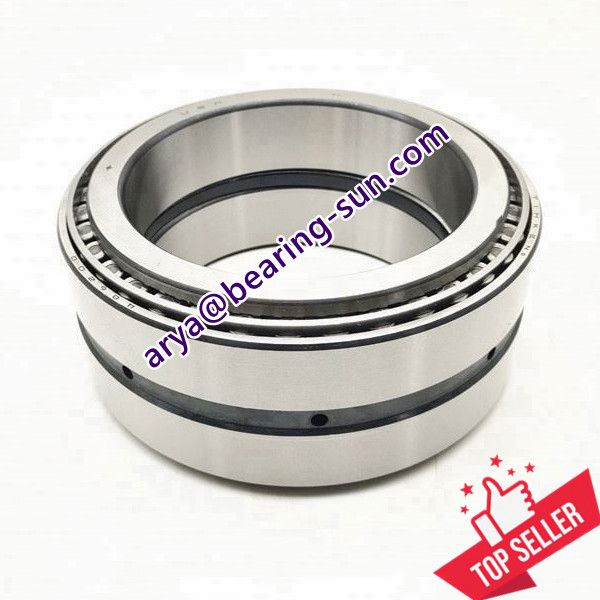

Below same series bearings are recommended
